A16601 Shower system

Art. A16601
Description
Shower system with shower head
The set consists of
Shower head, Ø 222 mm, ABS-Plastic, nozzles 110 pcs
Height-adjustable shower slide bar, Ø 22mm
5-spray hand shower with anti-lime system
Metal shower hose, 1500 mm
Shower mixer
Ceramic cartridge 35 mm, Sedal
Ceramic cartridge 35 mm, Sedal
Metal shower hose, 1500 mm
Plastic aerator Neoperl HONEYCOMB with adjustable angle of water flow
Mounting kit
Materials Brass, nickel-chrome plating, ABS-plastic

To choose a store

The nearest retail store

Description
Advantages

Shower head
Shower head for shower systems A16601 is made of brass. Nozzles are made of silicone with anti-lime protection system. Shower head is fastened to the cross bar with swivel joint connector which has inbuilt aerator for non-splashing water stream. It also allows you to change the angle of shower head from 0 to 22 degrees.


Hand shower holder
Holder with variable angle that can be rotated by 180 degrees. Holder can be raised or lowered to any convenient height. Just push the button and move the holder along the slide bar.


Height-adjustable shower slide bar
To adjust the height of A16601 you need to put out the upper part of the shower slide bar and fix it on the desired elevation using a coupling nut of the upper fastening.

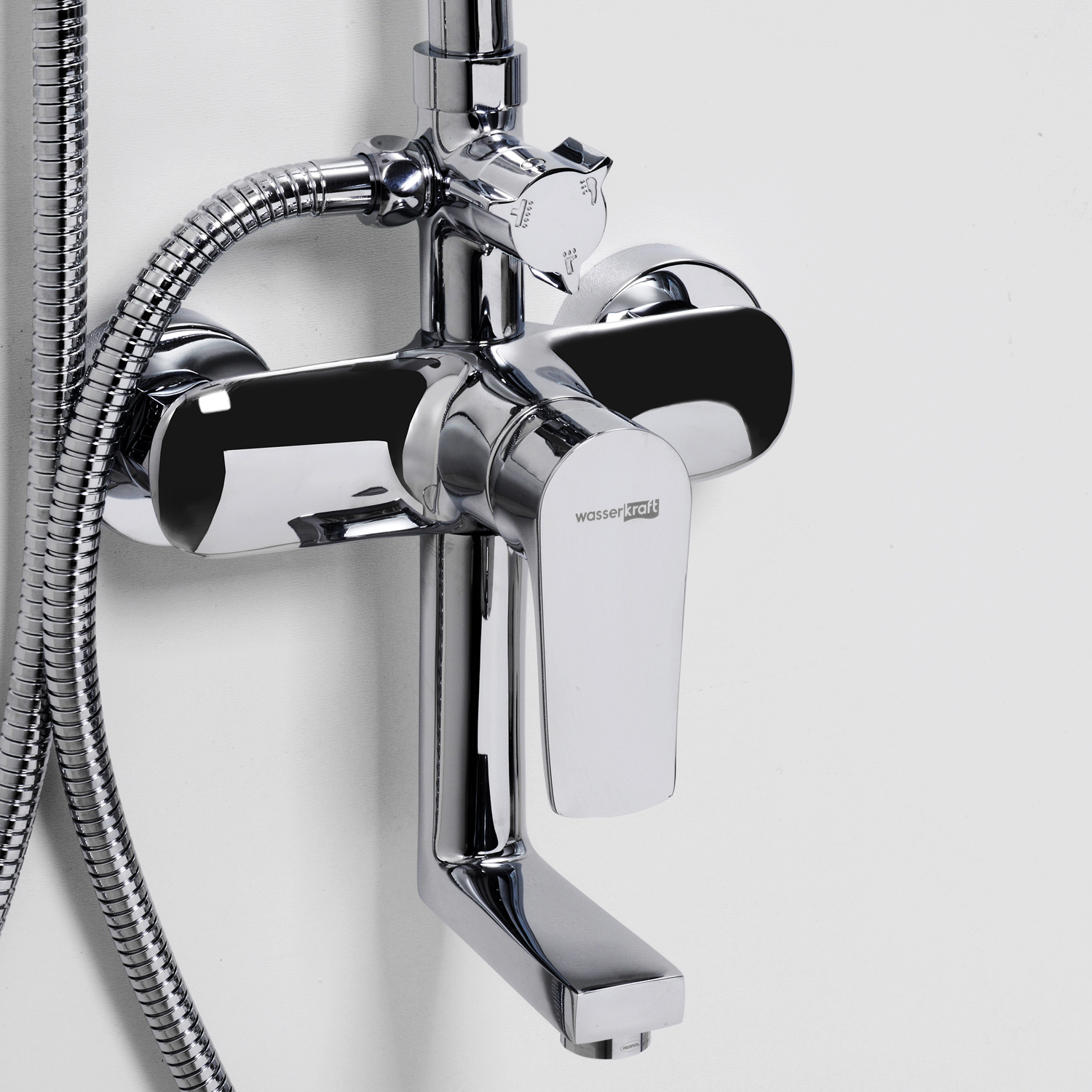

Single-lever bath-shower mixer
Сeramic cartridge 35 mm Sedal, plastic aerator Neoperl HONEYCOMB with adjustable angle of water flow.

  Ceramic swing diverter
Ceramic swing diverter consists of two ceramic discs pressed tightly together. Ceramic discs have holes that depending on swing of diverter redirect the water flow from the spout to shower hose or shower head. For switching water to shower or spout rotate the diverter by 90 degrees.


Installation
Shower system is easily fastened to the wall with a help of two eccentrics (connection to mixer) and one fastening element.
