Information about shower system

WasserKRAFT shower systems – safety, functionality and pleasure in one simple solution.




Materials
Shower systems are made of high-quality brass with copper content not less then 59%. Brass is the best material for producing shower systems and characterized by strength and durability. Shower heads  are made of ABS-plastic, stainless steel. ABS-plastic is used for producing 3-spray shower hands.





Plating
Shower systems pass galvanization process (lamination coating of chrome and nickel). Nickel-chrome plating is steady to fogging, can be easily cleaned and gives glossy shine and silver color.

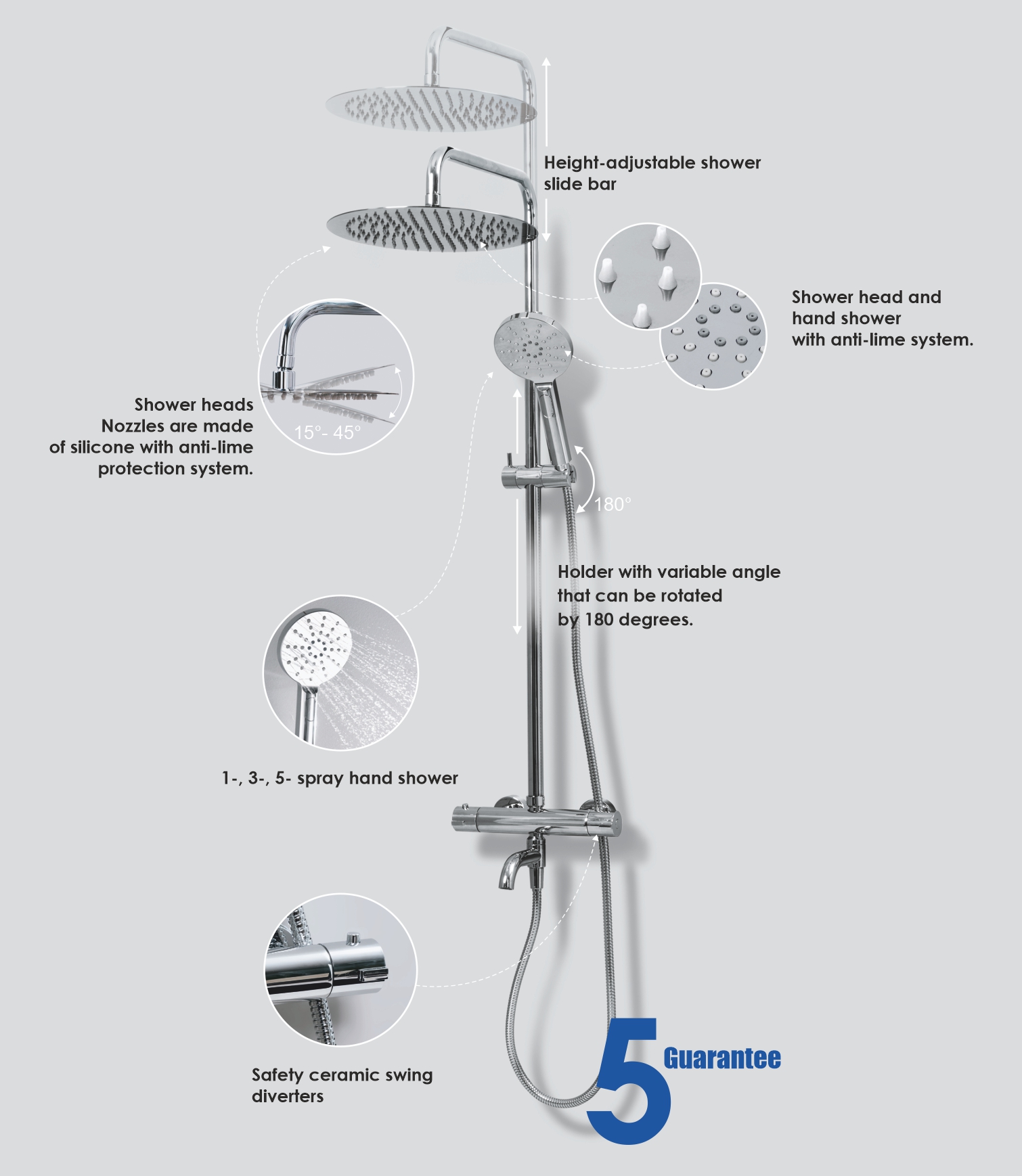

Safety ceramic swing diverters
Ceramic swing diverters consist of two ceramic discs pressed tightly together. Ceramic discs have holes that depending on swing of diverter redirect the water flow from the spout to shower hose or shower head. For switching water to shower or shower head rotate the diverter by 90 degrees. Ceramic swing diverters operate at a minimal pressure. Operational life of ceramic swing diverter is about 300 000 opening-closing cycles. Ceramic swing diverters are safe and easy in usage.





Shower heads
Shower systems are made of high-quality brass with copper content not less then 59%. Brass is the best material for producing shower systems and characterized by strength and durability. Shower heads are made of ABS-plastic, stainless steel. Nozzles are made of silicone with anti-lime protection system. Shower heads are fastened to the cross bar with swivel joint connector which has inbuilt aerator for non-splashing water stream. It also allows you to change the angle of shower head from 0 to 22 degrees. Due to a wide water spray shower head produces an effect of rain. You can get pleasure from feeling of soft summer rain or strong intermittent rain.





Shower hands
Shower hands are made of ABS-plastic, nozzles are made of silicone with anti-lime protection system. All shower hands used in shower systems have three modes of water supply. You can switch modes by rotating external ring of hand shower or with a help of plastic rod. The set of shower system А12202 consists of 1-spray hand shower).



Mixers
The set of shower systems А13302 Thermo consists of thermostatic shower mixers, the set of shower systems А12202 consists of shower mixers. Shower systems A13302 Thermo have a special ECO-function thanks to which you can save 50% of water consumption. You just need to press the button of ceramic diverter Flühs (Germany) and turn the handle to ECO-function. In this case water will be supplied in water saving mode. Thermostatic cartridges Vernet (France) are used in shower mixers of shower systems A13302 Thermo. Thermostatic mixer gives an opportunity to maintain temperature automatically from 20 to 50 degrees. Maximum working temperature is 65 degrees. Working pressure is 1 - 5 Bar, opt. - 3 Bar,max - 5 Bar.





Installation
WasserKRAFT shower systems are easily fastened to the wall with a help of two fastening elements and can be connected to any bath mixer by 600 mm shower hose with connecting thread G1/2.Shower systemA12202 andA13302 Thermo is easily fastened to the wall with a help of two eccentrics (connection to mixer) and one fastening element.
Please note! In thermostatic mixers hot water supply is on the left and cold water supply is on the right!
